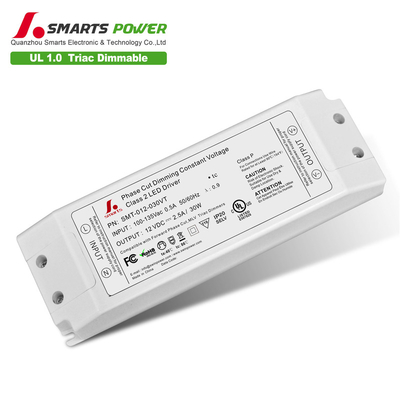

UL Listed 130Vac 12Vdc 2.5a 30w Triac Dimmable Constant Voltage Led Driver 180*60*35mm

Model

SMT-012-030VT

SMT-024-030VT

Output

DC Voltage

12V

24V

Voltage Tolerance

±0.5V

Rated current

2.5A

1.25A

Rated power

30W

Input

Voltage Range

90~135VAC / 170-265VAC

Frequency Range

47~63HZ

Power Factor

PF≥ 0.95 (Full loading)

Efficiency(Typ.)

81%

83%

AC Current(Max.)

0.41A

0.4A

Leakage current

-0.50mA/120VAC

Protection

Short Circuit

Hiccup mode, recover automatically after fault condition is removed

Over Current

≤1.2*I out

Over Loading

≤120%

Over temperature

100℃±10℃,Shut down o/p voltage,recover automatically after temperature goes down.

Environment

Working TEMP.

-40~+60℃

Working Humidity

20~90%RH, non-condensing

Storage TEMP. Humidity

-40~+80℃,10~95%RH

TEMP .coefficient

±0.03%/℃(0~50℃)

Vibration

10~500Hz,2G 12min./1 cycle,period for 72min. each along X,Y,Z axes

Safety& EMC

Safety standards

UL8750+UL1310 Class 2 unit

Withstand voltage

I/P-O/P:1500VAC

Isolation resistance

I/P-O/P:100MΩ/500VDC/25℃/70%RH

EMC EMISSION

FCC Part 15 B

Others

Net. Weight

0.55Kg

Size

180*60*35mm(L*W*H)

packing

350*195*180mm 20PCS/CTN

Notes

1. All parameters if NOT specially mentioned are measured at 120VAC/220VAC input , rated load and 25℃ of ambient temperature.

2. To extend the driver's using life ,please reduce the loading at lower input voltage.

3.Loading should be 60-100%.
