Home /Products/LED Tube Driver/LED Lighting DUSKTEC 3000mA 3A 36W Watt Constant Voltage AC 100-240 Volt DC 12V Slim LED Driver For TV Backlight

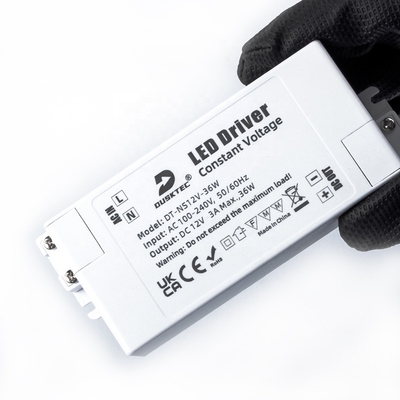

LED Lighting DUSKTEC 3000mA 3A 36W Watt Constant Voltage AC 100-240 Volt DC 12V Slim LED Driver For TV Backlight

1 Unit
MOQ
$6.02(1 - 499 Units) $5.79(500 - 1999 Units) $5.56(2000 - 9999 Units) $5.37(>=10000 Units)
Price
LED Lighting DUSKTEC 3000mA 3A 36W Watt Constant Voltage AC 100-240 Volt DC 12V Slim LED Driver For TV Backlight
Features Gallery Product Description Request A Quote
Features
Specifications
Model Number: DT-NS12V-36W
Output Power: 36W
Output Type: Single
Input Voltage: 100-240V
Output Voltage: 12V
Output Frequency: 50/60Hz
Output Current: 3A
Brand: DUSKTEC
Product Name: LED Driver (Switching Power Supply)
Warranty: 3 Years
Application: LED Lighting
Type: Constant Voltage
Protections: Short-circuit, Over-voltage, Over-current And Overload
Efficiency: 86%
IP Rate: IP20
Material: ABS
Power: 36W
Basic Infomation
Model Number: DT-NS12V-36W
Payment & Shipping Terms
Packaging Details: 1. Packed according to customer requirements. 2. Special protective cartons for export products.
Supply Ability: 48000 Unit/Units per Week
Product Description

Safe


Fully certified. Protection against short-circuit, over-voltage, over-current and overload.

Compact

Minimalistic design, miniature in size, well insulated, simple to install and easy to tuck away.

Durable


Well-constructed from quality components, stable output, silent operation, zero radio interference, engineered to last.

Applications

DT-NS Certifications Display

DT-NS Series Specifications
DT-NS 12V LED Driver
Model
Specifications
Power
Output Current
Item Dimension
Net Weight
Gross Weight
Units per Carton
DT-NS12V-6W


Input:
AC 100-240V, 50/60Hz

Output:
DC 12V, Constant Voltage
6W
0.5A
40*55*20mm
28.3g
32g
320pcs
DT-NS12V-12W
12W
1A
75*38*23mm
50.7g
55.4g
220pcs
DT-NS12V-15W
15W
1.25A
75*38*23mm
50.7g
55.4g
220pcs
DT-NS12V-24W
24W
2A
75*38*23mm
82.2g
88.3g
160pcs
DT-NS12V-30W
30W
2.5A
94*43*23mm
82.2g
88.3g
160pcs
DT-NS12V-36W
36W
3A
120*50*30mm
171.9g
179.6g
80pcs
DT-NS12V-48W
48W
4A
120*50*30mm
170.5g
178.2g
80pcs
DT-NS12V-60W
60W
5A
120*50*30mm
169.8g
177.5g
80pcs
DT-NS12V-75W
75W
6.25A
120*50*30mm
176.9g
184.6g
80pcs
DT-NS 24V LED Driver
Model
Specifications
Power
Output Current
Item Dimension
Net Weight
Gross Weight
Units per Carton
DT-NS24V-6W


Input:
AC 100-240V, 50/60Hz

Output:
DC 24V, Constant Voltage
6W
0.25A
40*55*20mm
28.3g
32g
320pcs
DT-NS24V-12W
12W
0.5A
75*38*23mm
51.9g
56.6g
220pcs
DT-NS24V-15W
15W
0.63A
75*38*23mm
51.6g
56.3g
220pcs
DT-NS24V-24W
24W
1A
75*38*23mm
79.5g
85.6g
160pcs
DT-NS24V-30W
30W
1.25A
94*43*23mm
81.8g
87.9g
160pcs
DT-NS24V-36W
36W
1.5A
120*50*30mm
171.5g
179.2g
80pcs
DT-NS24V-48W
48W
2A
120*50*30mm
171.8g
178.9g
80pcs
DT-NS24V-60W
60W
2.5A
120*50*30mm
172.3g
179.4g
80pcs
DT-NS12V-75W
75W
3.13A
120*50*30mm
169.4g
176.5g
80pcs


Product Range Gallery View

LED Driver
(DT-NS Series)


Mini compact, easy to tuck away, constant voltage, ranging from DC 12V/24V 6W to 75W.


Power Supply
(DT-NT Series)


Slim thin, easy to install, constant voltage, ranging from DC 12V/24V 60W to 400W.

Waterproof Power Supply
(DT-NW Series)


Solid build, robust, constant voltage, ranging from DC 12V/24V 60W to 400W.

Dimmable LED Driver
(DT-DS Series)


Mini compact, easy to tuck away, constant voltage, triac dimmable,
ranging from DC 12V/24V 12W to 80W.

Dimmable Power Supply
(DT-DT Series)


Slim thin, easy to install, constant voltage, triac & 0-10V dimmable, ranging from DC 12V/24V 60W to 400W.

Dimmable Waterproof Power Supply (DT-DW Series)


Solid build, robust, constant voltage, triac & 0-10V dimmable, ranging from DC 12V/24V 60W to 400W.


One Step Ahead
Dusktec is a market driven research and development supplier in switching power supply.

Our roots began a decade ago in the UK before we recently extended our operations to Shenzhen, the “Silicon Valley” of China,
under Shenzhen Huanghun Technology Co., Ltd.

Market Driven R & D


Market driven R & D is our underlying principle.
It’s not just what we can make, It’s about what makes us.
It’s you！


Flexible Partnership

We cover a versatile range of specialized fully certified (CE, UKCA, RoHs etc.) products from the standard power supply to the dimmable and the waterproof ones. Coupled with flexible personalized OEM, ODM and RTS solutions, we aim to make us the one-stop sourcing partner for your LED lighting power supply and other applicable needs.

Decade Long Experience


Our associated manufacturing plant houses automatic wave soldering machines, surface mount machines, automatic insertion machines and multi-function testing machines with a daily production capacity of 10,000 units. Our 10-man strong R & D team is not just good with their hands, but they are happily to provide any technical support over the phone at your will.


Production Process Outline


It’s not always easy to get something done right, the process can be challenging and tedious.
We are determined to do our part, so you can better do yours.
Every Detail Counts!
