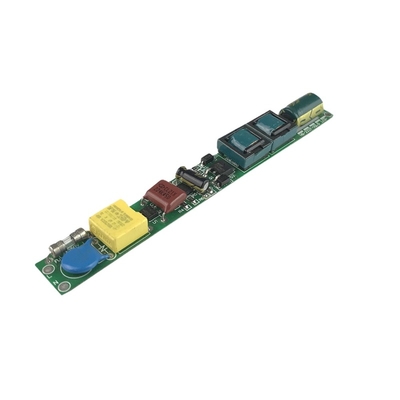

LED Tube and Bulb Driver 350mA 24W Non-Insulated Low THD T8 Led Driver For Tube Light

100 Pieces
MOQ
LED Tube and Bulb Driver 350mA 24W Non-Insulated Low THD T8 Led Driver For Tube Light
Features Gallery Product Description Request A Quote
Features
Specifications
Warranty(Year): 2-Year
Lighting Solutions Service: Lighting And Circuitry Design
Model Number: HG-PF2227
Output Power: 1 - 50W
Output Type: Single
Input Voltage: AC100-260V
Output Frequency: 50/60Hz
Output Current: 300mA
Application: LED Tube And Bulb Driver
Type: Consant Current
Name: High Power Factor Led Driver
Warranty: 2years
Size: L125*W15*H10 Mm
Protection: Short Circuit And Over Load
Function: Surge Protection 2.5-3KV
Basic Infomation
Model Number: HG-PF2227
Payment & Shipping Terms
Packaging Details: carton
Product Description
Product Description



350mA 24W low THD non-isolated T8 led driver for tube light

MODEL HG-PF2227-350
OUTPUT DC VOLTAGE 36-84V
CONSTANT CURRENT REGION 300-350mA
RATED CURREN 300mA
RATED Power 28W
RIPPLE & NOISE(Max.) 8.6Vp-p
VOLTAGE ADJ.RANGE 36-84V
INPUT VOLTAGE RANGE  AC100-260V
FREQUENCY RANGE 50/60Hz
POWER FACTOR(Typ.) 0.967
TOTAL HARMONIC DISTORTION(THD)  <25%
EFFICIENCY(Typ.) 92.3%
AC CURRENT <0.3A
ROTECTION SHORT CIRCUIT Hiccup mode, recovers automatically after fault condition is removed.
OVER LOAD Protection type: Shut down o/p voltage, re-power on to recover
Function Dimmable Function Non
EMC EMC EMISSION Compliance to EN55015
OTHERS DIMENSION L125*W15*H10 mm
DIMENSION 18g
WORKING TEMP. -30~+70℃
WORKING HUMIDITY 20~95% RH non-condensing
