Home /Products/LED Tube Driver/LED Lighting Good Heat Dissipation DC12V 20W IP67 Max Output Current 1.66A LED Driver Waterproof LED Driver for LED Strip Light

LED Lighting Good Heat Dissipation DC12V 20W IP67 Max Output Current 1.66A LED Driver Waterproof LED Driver for LED Strip Light

1 Piece
MOQ
$4.10(1 - 499 Pieces) $3.95(500 - 999 Pieces) $3.80(1000 - 4999 Pieces) $3.50(>=5000 Pieces)
Price
LED Lighting Good Heat Dissipation DC12V 20W IP67 Max Output Current 1.66A LED Driver Waterproof LED Driver for LED Strip Light
Features Gallery Product Description Request A Quote
Features
Specifications
Warranty(Year): 5 Years
Lighting Solutions Service: Lighting And Circuitry Design
Model Number: SJ-WF-12020
Output Power: 20W
Output Type: Single
Input Voltage: DC12V
Output Frequency: 50/60Hz
Output Current: 0-1.66A
Dimension: (L)165x(W)30x(H)20mm
IP Rating: IP67 (waterproof)
Working Temperature: -30~+70℃
Test: 100% Full Load Burn-in Test
Working Efficiency: 85%
Protections: Short Circuit/over Loading/over Current/over Temperature
MOQ: 1 Piece
Lifetime: 50000 Hours
Application: LED Lighting
Material: Aluminum
Basic Infomation
Model Number: SJ-WF-12020
Payment & Shipping Terms
Packaging Details: 1. Inner paper box, outside carton package; 2. Wooden case or steel rack is available; 3. Customized packing is acceptable.
Product Description
Products Description

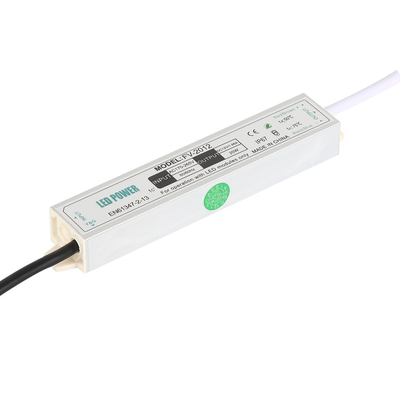

Good heat dissipation DC12V 20W IP67 LED driver waterproof LED driver max 1.66A output current for LED ribbon light
Features of IP67 waterproof LED power supply
1. 12V 20W waterproof LED driver, constant voltage.
2. Epoxy encapsulated, IP67. Suitable for outdoor lighting application.
3. Automated protection for over load and over temperature.
4. Aluminum housing, good for heat dissipation.
5. Cooling by free air convection.
6. Application: LED display, LED sign, LED channel letter, LED underwater light, LED outdoor decorative lighting.


Product details 01

◆ Model Number: SJ-WF-12020
◆ Input Voltage: AC170-265V
◆ Output Voltage: DC12V
◆ Output Current: 0-1.66A
◆ Wattage: 20W
◆ Dimension: (L)165x(W)30x(H)20mm


Product details 02

◆ Output Type: Single
◆ Material: Aluminum
◆ IP Class: IP67 (waterproof)
◆ Output Frequency: 50/60Hz
◆ Working Temperature: -30~+70℃
◆ Working Efficiency: 85%
Specification
Item No.
SJ-WF-12020
Input Voltage
AC170-265V
Output Voltage
DC12V
Output Current
0-1.66A
Wattage
20W
Dimensions
(L)165x(W)30x(H)20mm
IP Rating
IP67 (waterproof)
Dimmable
No
Material
Aluminium
Warranty
5 years
Certification
CE, RoHS
Application
◆ Office lighting, artwork lighting, display case.
◆ Home lighting.
◆ Commercial lighting, such as down light, underground lamp, panel light, spotlight, wall washer, etc.
◆ Hotel, restaurant lighting.
◆ Other public lighting.
Packing & Delivery
Package included:
1x DC12V 20W LED power supply
