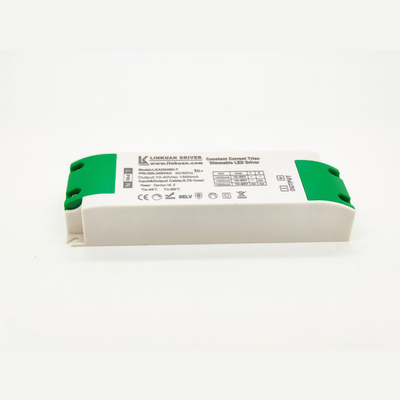

Led Driver 220v Led Driver 220v TUV SAA Triac Dimmable Led Driver 70 Watt Immersion-Changer Current Adjustable Multiple Output Led Driver

1 Piece
MOQ
$2.00(1 - 49 Pieces) $1.00(50 - 499 Pieces) $0.50(>=500 Pieces)
Price
Led Driver 220v Led Driver 220v TUV SAA Triac Dimmable Led Driver 70 Watt Immersion-Changer Current Adjustable Multiple Output Led Driver
Features Gallery Product Description Request A Quote
Features
Specifications
Features: Led Driver 220v
Warranty(Year): 5-Year
Lighting Solutions Service: Project Installation
Model Number: LKAD067D-T
Output Power: 50W-70W
Output Type: Single
Input Voltage: 200-240VAC
Output Frequency: 50/60Hz
Output Current: 25-42Vdc 1100mA-1700mA 45-80Vdc 550mA-850mA
Certification: TUV SAA CE Standard
Size: 175*50*30mm
Efficiency: 85%
Power Factor: 0.9
Type: Class 2 Constant Current Triac Dimmable Led Driver
Current Accuracy: ±3%
Degree Of Protection: IP20
Application: LED Panel Light
Product Name: TUV SAA Lifud Led Driver Led Dimmable Driver 50W With DIP-switcher
Basic Infomation
Certification: TUV SAA CE standard
Model Number: LKAD067D-T
Payment & Shipping Terms
Packaging Details: led driver 220v TUV SAA Triac dimmable led driver 70 watt DIP-switcher current adjustable multiple output led driver 1pc pack in 1 inner box, 100pcs in 1 carton
Supply Ability: 10000 Piece/Pieces per Month
Product Description
Product Description
What is TRIAC Dimming?
Dimmers have fast become a vital part of many lighting applications and installations. Dimmers allow you to set the level of light and save energy on the output and when teamed with an LED light source, this energy saving can be quite substantial. Phase-cut dimmers are the most common dimming control and are often referred to as TRIAC dimmers. Creating the ideal configuration of LED lamps with the TRIAC dimmer has, in the past, been a challenge, but the introduction of new TRIAC dimming LED drivers has made this much simpler. TRIAC dimming controls act as a high-speed switch and are used to control the amount of electrical energy passing to a bulb. A ‘trigger’ dictates what point the device starts to conduct the electricity, essentially “chopping up” the voltage waveform, stopping the voltage from being supplied at full load. The quicker the switch reacts the more power is let through and the later it reacts, the less power, resulting in a dimming of the bulb. This is very similar to more common Thyristor dimmers, however TRIAC dimming is less likely to produce “half wave” on failure or Hz flicker and therefore the lifespan of the LED’s are not as greatly reduced as they are with Thyristor dimmers. When using a TRIAC dimmer with LED light solutions and sourcing a TRIAC dimming LED driver you need to ensure it is actually a TRIAC semiconductor device as TRIAC dimmers are designed for resistive loads, which LED solutions are not. If the correct TRIAC dimming led driver is not sourced the lights will not perform as expected with the TRIAC wall dimmer; resulting in LED’s not dimming or creating a Hz flicker which will shorten the life of the LED’s.
Product Features
WHY USE A PHASE CUT (TRIAC DIMMABLE) LED DRIVER?
Phase cut LED drivers that can be used with leading edge (TRIAC) dimmers and leading edge dimmers that you find in most homes. This means that they are ideal if you are retrofitting LED lighting and want to be able to use the existing wiring and dimmer switches.They are also used in commercial retrofit projects. Most modern lighting control systems use either an analogue control signal, such as 1-10V, 0-10V or PWM to control the LED drivers, or the DALI lghting communications protocol. Typically, when installing LED lighting in a commercial project you will find that 0-10V, 1-10V, or DALI LED drivers are used. This sort of installation requires dedicated wiring to be run from the control systm to the LED driver, which means internal walls and ceilings need to be removed and replaced. With heritage sites it is not always possible to tear down walls and ceilings to run new wires. So, a solution that can work with existing wiring is required. Phase cut dimmable LED drivers are ideal because they don't require any dedicated wiring to be run to the LED driver. They can just be hooked up to the existiing wiring. If a DALI system is being used, then a simple DALI to trailing edge dimming converter can be installed.
Product Paramenters
led driver 220v TUV SAA Triac dimmable led driver 70 watt DIP-switcher current adjustable multiple output led driver
INPUT
Input Voltage
200-240VAC
Input frequency
50/60Hz
Power Factor
0.9
OUTPUT
DC Voltage
25-42Vdc 45-80Vdc
Rated Current
1100mA-1700mA  550mA-850mA
Rated Power
50W-70W
SETUP Rise Time
<0.5s
PROTECTION
Short circiut
Recovers automatically after fault condition is removed
Overload
Overload protected @110-130% above peak rating
Over Temperature
Shut down o/p voltage . re-power on to recover
IP Code
IP20
ENVIRONMENT
Working TEMP.
-30-+50℃ (refer to output load derating curve)
Storage TEMP.
-40-+80℃
Safety & EMC
Safety Standards
TUV SAA
EMC Test Stardands
CE
DIMENSION
175*50*30mm
Details Images
Certifications
Our products have TUV,CE,SAA,UL,FCC,CCC certifictes.
Installation Dimension
Installation Diagram
Related Products
Constant Voltage Triac Dimmable LED Driver for LED strips and LED Neons lights

Model:LKAD029DV

Input voltage:100-277Vac
Output Power: 30W
Output Voltage: 12/24Vdc
Output Current: 2.5A/1.25A
Dimming type: Triac Dimmable led driver 12v 24v

Model:LKAD060V-TD

Input voltage:200-240Vac Output Power: 50W Output Voltage: 12/24Vdc Output Current: 4A/2A Dimming type: Triac Dimmable led driver 12v 24v

Model:LKAD086V-T

Input voltage:100-277Vac Output Power: 80W
Output Voltage: 12/24Vdc Output Current: 6A/3A Dimming type: Triac Dimming

Model:LKAD0100V-C

Input voltage:200-240Vac Output Power: 100W
Output Voltage: 12/24Vdc Output Current: 8A/4A Dimming type: Triac Dimming

Model:LKAD0200V-C

Input voltage:100-277Vac Output Power: 150W
Output Voltage: 12/24Vdc Output Current: 12.5A/6.25A Dimming type: Triac Dimming
Company Profile
About Linkuan Power
Guangdong Linkuan Smat Tech Co., LTD. (hereinafter referred to as Linkuan Smart), formerly known as Dongguan Linkuan Semiconductor Lighting Co., Ltd., was founded in 2007. It is located in Dongguancity, a famous manufacturing city in China.The company plant area is about 4500 square meters, the registered capital is 10 million yuan, the staff is about 150 people, inclduing 30 management, engineering and technical persons.The company has 4 automatic production lines, 2 wave soldering machines, 5 sets of automatic constant temperature burning-test equipment, ultrasonic wave equipment and other efficient production equipment.
Factory Show
R&D Ability
Our Team
Delivery
Fast Delivery
Samples orders: 1-3 days Less than 50pcs should be sample order to us
OEM orders: 7-10 days Avaialbe for quantity within 1000pcs and 80W LED drivers
FAQ
1) Question: When was the LINKUAN Company established? Answer: Our company was established in 2005 with a registered capital of 30 million yuan. 2) Question: What is the main business of the LINKUAN? Answer: Since 2005, the company has been committed to the research and development of LED controllers / LED drivers / LED dimmers. It currently holds a leading position in the field of LED control and dimmer control. Our products are compatible with Lutron, Dynalite, Clipsal, LDS, Helvar, Osram, Philips, ABB, Schneider, Leviton, JUNG, Brocade, Simon, Lichtregler, etc. 3) Question: What are the main products of the LINKUAN? Answer: The collar products currently have Triac dimmable LED Driver / DALI dimmable led driver / 1-10v/0-10v led driver / led driver remote control 2.4g RF Wireless / Zigbee led driver / wifi led driver / tuya smart LED Driver / Bluetooth led driver / non dimmable LED Driver 1-400W, dmx512 controller, thyristor dimmer and other series of dimmers, dimming led power supplies, and load controllers, high voltage, low voltage, constant current, constant Pressure LED lighting fixtures can be equipped with corresponding controllers. Can be used with or with the following brand products: Lutron, Dynalite, Qisheng, LDS, Helvar, Osram, Philips, ABB, Schneider, Leviton, JUNG, Brocade, Simon, Lichtregler Wait. 4) Question: Is the product of the LINKUAN developed and designed by itself? What are the advantages? Answer: All of our products are self-developed and produced, and have their own intellectual property rights, and have won hundreds of national patents; our original digital dimming technology makes the dimming curve smooth and completely solves the stroboscopic and jitter problems; The products have been sold to more than 100 countries and regions around the world. 5) Question: What is the quality control system for the LINKUAN? Answer: We strictly control quality according to ISO9001:2008. Since 2008, our ISO9001:2008 certificate has been issued by SGS from Switzerland. 6) Question: What certifications and products do we have? Answer: We mainly issue UL FCC TUV CE, CB, SAA, C-Tick, PSE, ETL, CCC and other certificates issued by SGS from Switzerland. Many products from Australia, Japan, and China can be converted into the customer's own country certificate through our CB certificate. 7) Question: How long is our product warranty? Answer: The crown products are subject to strict quality control. The product warranty for low-voltage input is 5 years, and the product warranty for high-voltage input (110-220V) is 3 years. 8) Question: How do I purchase a product that leads? Answer: Our headquarters is located in Dongguan, and Zhongshan has an office. Please tell us the products you are interested in and the quantity ordered, we will send you a quote as soon as possible. Our standard products have an inventory of 80,000 units. It is our consistent advantage to respond quickly to the needs of our customers. If the product is not in stock, we will deliver it within two to four weeks. Mobile: +86 15899935775 Wechat: Nicole-HYL05 Skype: Nicolekoalaa 9) Question: What should I do if I have a problem after receiving the goods? Answer: Please describe the problem in detail. You may need to provide us with pictures of product connection and system settings. We will help you solve the problem as soon as possible. Incorrect connections and system settings are common problems. If our products have quality problems during the warranty period, they will be replaced free of charge
