Home /Products/Flood Light Driver/Outdoor Lighting Waterproof Led Driver 3-5*3W DC9-18V 580ma 600ma For Spot Light

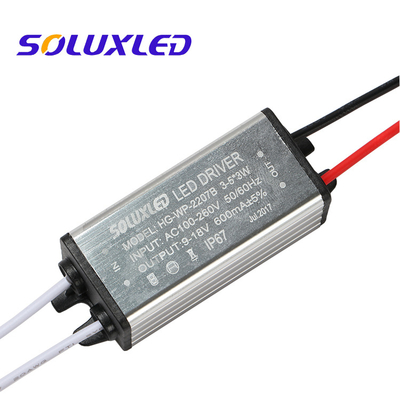

Outdoor Lighting Waterproof Led Driver 3-5*3W DC9-18V 580ma 600ma For Spot Light

100 Pieces
MOQ
$1.20(100 - 499 Pieces) $1.00(500 - 999 Pieces) $0.98(>=1000 Pieces)
Price
Outdoor Lighting Waterproof Led Driver 3-5*3W DC9-18V 580ma 600ma For Spot Light
Features Gallery Product Description Request A Quote
Features
Specifications
Warranty(Year): 2-Year
Lighting Solutions Service: Lighting And Circuitry Design
Model Number: HG-WP-2207B
Output Power: 3-5*3W
Output Type: Single
Input Voltage: AC100-260V
Output Frequency: 50/60Hz
Output Current: 580ma
Application: Outdoor Lighting
Type: Consant Current
Efficiency: >90%
Warranty: 2years
Size: 50*25*20mm
Protection: Short Circuit Over Load
Working Temperature: -30~+70℃
Working Humidity: 20 ~ 95% RH Non-condensing
Basic Infomation
Model Number: HG-WP-2207B
Payment & Shipping Terms
Packaging Details: carton
Product Description
Product Paramenters
MODEL
HG-WP-2207B-580
OUTPUT
DC VOLTAGE
DC17V
CONSTANT CURRENT REGION
580mA±5%
RATED CURRENT
580ma
RATED POWER
3-5*3W
VOLTAGE ADJ.RANGE
DC9-18V
INPUT
VOLTAGE RANGE
AC100-260V
FREQUENCY RANGE
47-63Hz
POWER FACTOR(Typ.)
0.5
EFFICIENCY(Typ.)
88%
AC CURRENT
<0.5A
PROTECTION
SHORT CIRCUIT
Hiccup mode, recovers automatically after fault condition is removed.
OVER LOAD
Protection type: Shut down o/p voltage, re-power on to recover
Function
Dimmable Function
Non
OTHERS
DIMENSION
L50*W25*H20 mm
PACKING
100g/pcs
WORKING TEMP.
-30~+70℃
WORKING HUMIDITY
20~50% RH non-condensing
Detailed images
LED Driver Power supply IP67 , application : LED Grow light , LED Street light, LED flood light, led high bay light etc.

Customized enclousure

In this series product, some are half aluminum enclousure without srews. Customized full aluminum enclousure is available, please attached this request if you need before order, we will send new quotation for your refer.

Customized cable connector

we can solder the cable with connector required , detials price pls talk before confirm the order.

Capacitor change

Need change with better capacitor like Aishi or NEC capacitor, surely, it is possible. Please ask offer before confirm the order.
