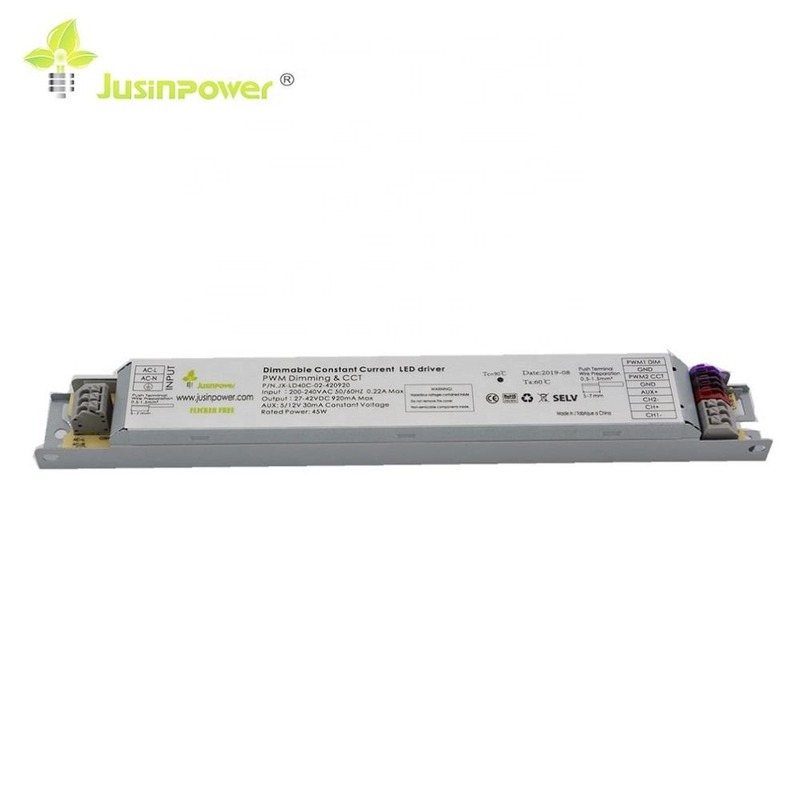

Name: Adjustable CCT & 40W Super Warm Led Linear Adjustable White Driver Dimming
Brand: Adjustable CCT & 40W Super Warm Led Linear Adjustable White Driver Dimming
SKU: JX-LD40C-02
Price: 8.25 USD
Availability: InStock
Rating: 4.7 (159 reviews)

Features Gallery Product Description Request A Quote

Features

Specifications

Warranty(Year): 3-Year

Lighting Solutions Service: Lighting And Circuitry Design

Model Number: JX-LD40C-02

Output Power: 40W

Output Type: Single

Input Voltage: 100-277V

Output Frequency: 50/60Hz

Output Current: 920mAÂ±3%

Product Name: Tunable White Driver 5V

Style: Adjustable CCT & Dimming

High Efficiency: 85%

Surge Protection: 1KV

Waterproof: IP20

Output Voltage: 30-42V

P.F: 0.90

THD: <20%

Size: 243*30*20.5mm

Warranty: 3 Years

Basic Infomation

Model Number: JX-LD40C-02

Payment & Shipping Terms

Packaging Details: carton with polyform

Product Description

Very hot led linear tunable white driver 40W

Tunable white series

Auxiliary power supply: 5/12v

Specification

Model No.	JX-LD40C-02
Type	Adjustable CCT and 0-10V dimmable
Input Voltage	100-277V
Max Power	40W
Output Votlage	30-42V
Output Current	920mA
High Efficiency	85%
P.F	0.90
Storage temperature	-20-50C
THD	<20%
Flicker free	Yes
Surge Protection	1KV
Size	2433020.5mm
Certificates	meet UL/CE/SAA/CB standard
Warranty	3 years
Application	indoor lighting

---- You can use IOS & Android supported smart control APP to adjust CCT and dim brightness of your lights .
